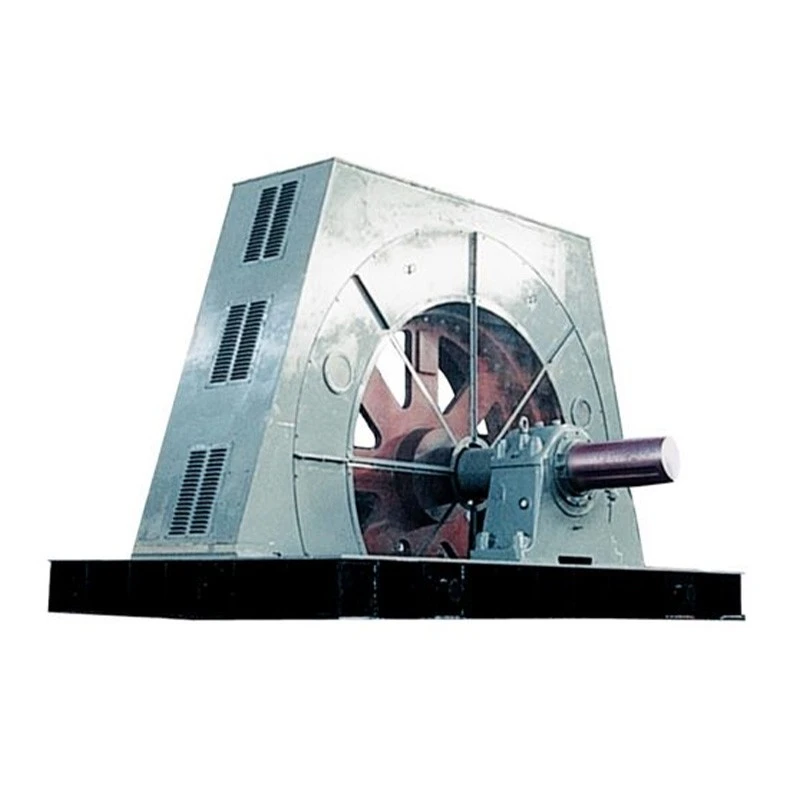

TK series Motor Introduction
Overview
The TK series 6kv synchronous motor three-phase synchronous motors are specially engineered for air compressor applications, serving as the core drive solution for equipment in the refrigeration and fertilizer industries. Designed for reliable industrial operation, the standard starting method is full-voltage direct starting; for installations with limited grid capacity, reduced-voltage starting is available as an optional configuration.
Fully compliant with national standards, the motors meet GB 755 Rotating Electrical Machines – Rating and Performance and JB/T 8667.1-2011 Technical Specifications for Large Three-Phase Synchronous Motors Part 1: TK Series, ensuring consistent performance and quality for industrial applications.
Main Technical Parameters
|
Stator Size |
990~2600mm |
|
Power Scope |
250~4000kW |
|
Voltage |
6000V, 6600V, 10000V, 11000V |
|
Poles |
10P,12P,14P,16P,18P,20P,24P |
|
Speed |
600rpm, 500rpm, 428rpm, 375rpm |
|
Cooling Method |
IC01, IC37 |
|
Protection Grade |
IP20 |
|
Insulation Class |
B(130℃), F(155℃) |
|
Duty |
S1 |
|
Mounting Type |
IM 7311, IM 5710 |
Construction & Design
The series 6kv synchronous motor offers two structural and mounting configurations to match compressor designs:
IM7311
Equipped with a drive shaft and pedestal bearing
IM5710
Without a drive shaft and pedestal bearing
The standard cooling method is open self-ventilation (IC01), with custom solutions such as ducted ventilation available upon request. The excitation system of high voltage synchronous motor adopts a thyristor-controlled excitation device, delivering stable magnetic field control and reliable operation across load conditions.
.
Application Industries
While primarily designed for driving air compressors, the TK series 6kv synchronous motors are also suitable for powering other industrial machinery, including water pumps, blowers, and other high-power transmission equipment, making them a versatile solution for various industrial drive systems
Ordering Information
|
Ordering Scenario |
Complete Data and Technical Parameters Required |
|
Replacement of Existing Motors |
For projects involving the replacement of existing motors, customers must provide high-resolution photographs of the original motor's nameplate, full-view images of the motor assembly, installation and assembly drawings, and the original technical parameter sheet. The factory's Technical Department will utilize this photographic evidence and original data to precisely verify the operating conditions, identify the appropriate customized motor model, ensure seamless compatibility, and generate an accurate production quotation. |
|
Integration with New Equipment |
For projects involving the integration of motors with new equipment, comprehensive details regarding operating conditions and technical parameters must be provided. This includes operating voltage, rated power, operating speed, power supply frequency, frame size, cooling method, insulation class, wiring connection method, starting method, accompanying drive equipment, specific industry application, and ambient site temperature. Additionally, specific requirements for accessories and spare parts-such as heaters, temperature sensors, vibration sensors, speed sensors, and encoders-must be clearly specified. |
