T series motor introduction
Overview

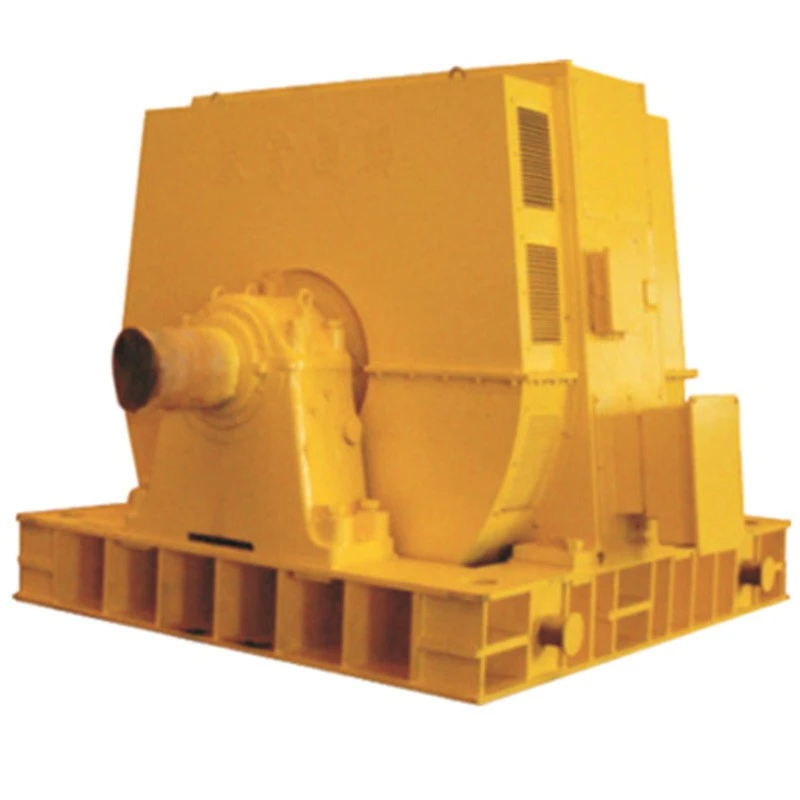

The T series industrial air compressor motor three-phase synchronous motors are engineered for driving fans, water pumps, motor-generator sets, and other general industrial machinery. The standard rated voltage is 10000V, with a 6000V option available upon request, operating at 50Hz with a rated power factor of 0.9 (leading). Full-voltage direct starting is permitted, requiring a starting resistor of 10 times the field winding resistance to be connected in series in the rotor circuit during startup. All large Synchronous motors fully comply with the national standard GB 755 Rotating Electrical Machines – Rating and Performance.
Main Technical Data
|
Stator Size |
1180~1730mm |
|
Power Scope |
400~10000kW |
|
Voltage |
6000V, 6600V, 10000V, 11000V |
|
Poles |
4P, 6P, 8P, 10P, 12P, 16P, 20P, 24P |
|
Speed |
1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm, 375rpm, 300rpm, 250rpm, |
|
Cooling Mechod |
IC01, IC37 |
|
Protection Grade |
IP20 |
|
Insulation Class |
F(155℃) |
|
Duty |
S1 |
|
Mounting Type |
IM7311 |
Construction & Design
These are horizontal-mounted industrial air compressor motors with multiple cooling methods: open self-ventilation, ducted/semi-ducted ventilation, and closed self-circulating ventilation. They are available in single or double shaft extensions, with a standard counterclockwise rotation from the collector end (reversible with modified fan blades).
-
Frame
Welded steel structure, fixed to a steel base plate with bearing pedestals.
-
Stator Core
Laminated from 0.5mm silicon steel sheets, secured to the frame with tension bolts.
-
Stator Winding
Lap-wound, Class F insulated with anti-corona treatment, secured at ends and fully VPI vacuum-impregnated.
-
Pole & Field Winding
Laminated pole cores with field coils, mounted on the wheel hub; Class F insulated copper field coils.
-
Bearings
Cast iron pedestals with babbitt-lined bearings, lubricated via oil ring or forced lubrication systems.
-
Brush & Collector
Assembled collector rings with brushes in constant-pressure holders, mounted on the bearing side.
-
Excitation
Thyristor-controlled excitation system, available as a fully matched package from our company.
Cooperative partner
about Us
Leveraging robust R&D and manufacturing capabilities alongside a mature cross-border service infrastructure, PUTAI Electric Motor Equipment Co., Ltd. has established itself as a highly competitive, motor manufacturer within the industry. The company has built a comprehensive product ecosystem for industrial motors, encompassing a full spectrum of AC, DC, and medium-voltage motors across all specifications. This offering is complemented by a range of auxiliary equipment, including intelligent motor starters and drives, custom winding assemblies, high-precision motor components, and various electrical accessories. Addressing the diverse operational requirements of global mid-to-high-end industrial clients, we specialize in customized drive system solutions, distinguished by our core strengths: rigorous manufacturing precision and stable equipment performance. We offer comprehensive capabilities ranging from the bulk procurement of standardized motors and the retrofitting or replacement of aging motors in industrial field settings, to the R&D and customization of specialized motors for unique operating conditions, as well as the one-stop procurement of various ancillary products-thereby providing our overseas clients with high-quality, end-to-end supply chain assurance.
Warehouse
Common Models in Stock
Ordering Information
|
Application |
Required Data to Get a Quotation |
|
Replacement |
For the procurement of motors intended as replacements for existing equipment, customers are required to provide clear photographs of the original motor's nameplate, photos of the overall equipment assembly, assembly drawings, and the original technical specifications. Based on the provided information, we will precisely identify the exact matching model and select the appropriate customized product specifications to furnish you with an accurate and error-free formal quotation. |
|
New Equipment |
For the procurement of motors intended as components for brand-new equipment, a complete submission of all technical parameters and customization requirements is mandatory. This includes voltage, power, rotational speed, frequency, frame size, cooling method, insulation class, connection type, starting method, driven equipment, application industry, and ambient operating temperature. Additionally, please specify whether accessories-such as heaters, temperature sensors, vibration sensors, speed sensors, or encoders-as well as corresponding spare parts, are required. |
