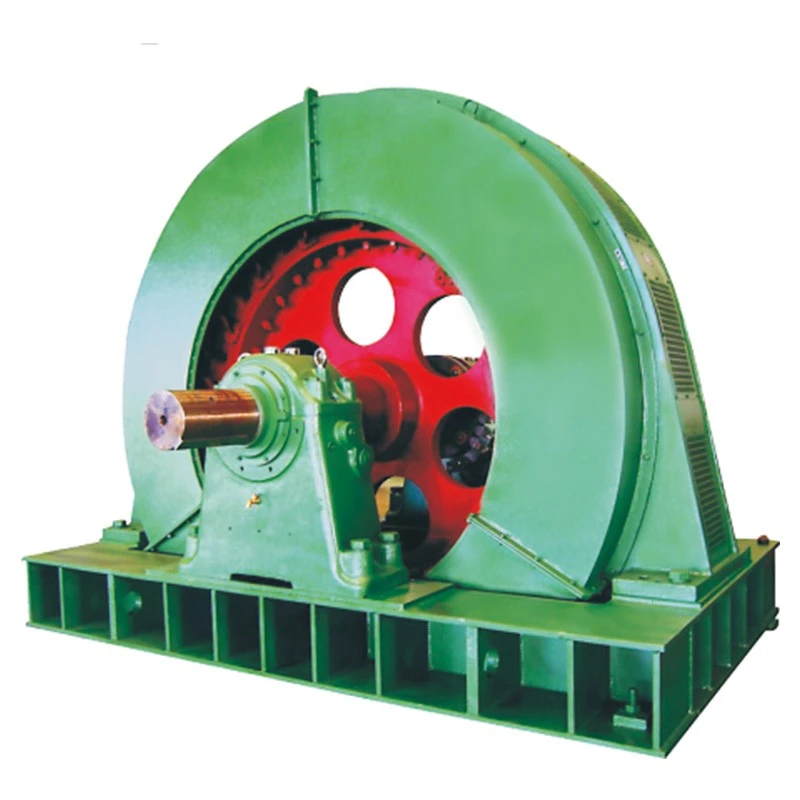

Xian Putai Electric Motor Equipment Co., Ltd. is one of the leading manufacturers and suppliers of tdmk rolling mill motor in China. If you're going to buy CE approved tdmk rolling mill motor, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Main Technical Parameters
|
Frame Size |
1400~3250mm |
|
Power Scope |
280kW~2000kW |
|
Voltage |
3000V, 3300V, 6000V, 6600V, 10000V, 11000V |
|
Poles |
32P,36P,40P |
|
Speed |
250rpm; 200rpm; 187.5rpm; 167rpm; 150rpm;100rpm |
|
Cooling Method |
IC01 |
|
Protection Grade |
IP00, IP20 |
|
Insulation Class |
B(130℃), F(155℃) |
|
Duty |
S1 |
|
Mounting Type |
IM 7311 |
|
Environment |
few dust, no steam, no acid, no alkali in the air |
TMDK Introduction
The TDMK series rolling mill motor is specially designed for mine mill drive systems, manufactured strictly in accordance with JB/T 1473-2000 Technical Specifications for Large AC Three-Phase Synchronous Motors for Mine Mills. Ideal for indoor environments, the motors are suitable for applications with altitude not exceeding 1000m, ambient temperature ≤40℃, low dust concentration, and no steam, acid, alkali or other corrosive gases, ensuring reliable performance in harsh mining conditions.
Electrical Specifications
Rated at 50Hz with a power factor of 0.9 (leading), the rolling mill motors offer a rated voltage of 6kV or 10kV, and a 3kV version is available upon request. The rated voltage of mining synchronous motor tolerance is ±5%, providing flexibility for various grid conditions.
Mechanical & Design Features
The series rolling mill motor adopts an IP00 enclosure as standard (IP20 IP44 IP54 optional), coupled with IC01 (IC37 ICW37 optional) cooling method and IM731 structural/mounting type, ensuring compatibility with large mill drive systems. The motor is equipped with a cylindrical shaft, rotating counterclockwise when viewed from the slip ring end (clockwise optional). The shaft shall not bear additional radial or axial forces when connected to the mill via a coupling.
Excitation & Starting
The excitation system of ac synchronous permanent magnet electric motor employs a thyristor excitation device, enabling stable magnetic field control. Full-voltage direct start is permitted; for grids with strict constraints, reduced-voltage start is available. The starting current decreases proportionally with the terminal voltage, while the starting torque decreases as the square of the terminal voltage, optimizing start-up performance under different load conditions.
Wiring & Bearing System
The stator has six outgoing leads marked U1, V1, W1, U2, V2, W2, led out via high-voltage rubber cables at the lower terminal box of the base. The base bearings adopt oil-ring or composite bearings, with insulating pads between the bearing and base plate to prevent shaft current damage, significantly extending service life. For air clutch applications, the shaft can be customized with a perforated design upon request.
Application Industries
Ordering Information
|
Ordering Scenario |
Complete Data and Technical Parameters Required |
|
Replacement of Existing Motors |
For projects involving the replacement of existing motors, customers must provide high-resolution photographs of the original motor's nameplate, full-view images of the motor assembly, installation and assembly drawings, and the original technical parameter sheet. The factory's Technical Department will utilize this photographic evidence and original data to precisely verify the operating conditions, identify the appropriate customized motor model, ensure seamless compatibility, and generate an accurate production quotation. |
|
Integration with New Equipment |
For projects involving the integration of motors with new equipment, comprehensive details regarding operating conditions and technical parameters must be provided. This includes operating voltage, rated power, operating speed, power supply frequency, frame size, cooling method, insulation class, wiring connection method, starting method, accompanying drive equipment, specific industry application, and ambient site temperature. Additionally, specific requirements for accessories and spare parts-such as heaters, temperature sensors, vibration sensors, speed sensors, and encoders-must be clearly specified. |
Production process
Package
about Us
- PUTAI Electric Motor Equipment Co., Ltd. is a direct-operated motor manufacturing enterprise that integrates R&D, precision manufacturing, and cross-border trade. With years of deep expertise in the field of industrial electric drives, the company specializes in a comprehensive range of industrial motors and complementary electrical equipment-including AC motors, DC motors, medium- voltage industrial motors, motor starters and drives, motor winding assemblies, precision components, and a full suite of auxiliary electrical devices.
- The company focuses precisely on the mid-to-high-end industrial market segment, leveraging personalized customization services as its core competitive advantage. By relying on mature engineering and manufacturing technologies-and taking into account the complex operating conditions unique to various industries-we tailor highly compatible and stable motor drive system solutions for our clients.
- Furthermore, we offer a comprehensive, one-stop service package that encompasses the bulk supply of standard motors, on-site replacement and upgrading of aging motors, custom design of specialized motors for non-standard operating environments, and the supply of a full range of motor spare parts
