Xian Putai Electric Motor Equipment Co., Ltd. is one of the leading manufacturers and suppliers of th-hvf high voltage induction inverter in China. If you're going to buy CE approved th-hvf high voltage induction inverter, welcome to get pricelist from our factory. All customized products are with high quality and low price.

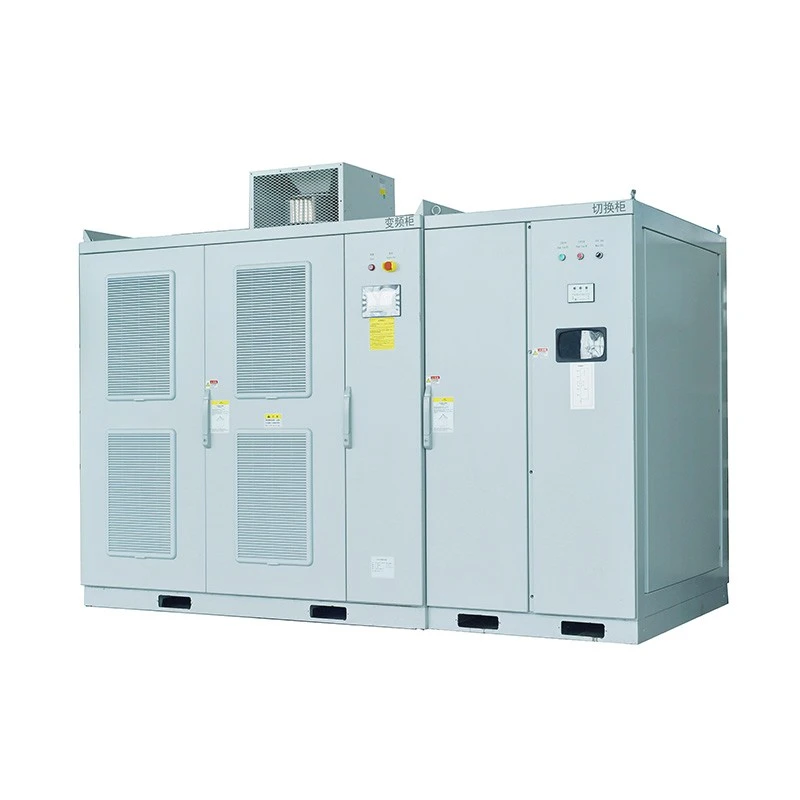

TH-HVF High-voltage Inverter Cabinet Introduction
- The TH-HVF series High Voltage Induction Inverter cabinet is a high-performance industrial frequency conversion device, integrated with advanced core technologies to provide reliable speed regulation and energy-saving solutions for heavy-duty industrial equipment. It adopts power unit series stacking technology, vector control technology and optimized PWM control algorithm, which can stably convert 50Hz grid voltage into 0~50Hz (60Hz) variable-frequency sinusoidal voltage and current, accurately adjusting motor speed to meet users' needs for speed regulation, energy saving of fans, pumps and other equipment, as well as production process improvement.
- Equipped with a power unit high-high scheme and multi-winding high-voltage phase-shifting transformer, the High Voltage Induction Inverter ensures that the secondary winding current forms a sinusoidal waveform after superposition on the primary side, achieving a power factor of over 0.95 and an overall efficiency of more than 98%. Its multilevel converter design reduces harmonic amplitude through superposition, with input free of harmonic pollution and output harmonic distortion less than 2%, exceeding the requirements of the IEE519 international standard for power quality.
To enhance system reliability, each power unit is equipped with a bypass circuit, which can automatically detect faults and bypass failed units to ensure continuous operation. This High Voltage Induction Inverter also integrates reliable current oscillation suppression algorithm to avoid system protection triggered by overcurrent or overvoltage during light load or no-load operation. Additional core functions include flywheel start (speed tracking start) for smooth startup under external force rotation, free switching between constant and variable frequency without protection shutdown, and multi-machine master-slave control for power balance in scenarios such as belt conveyors and elevators, making it an ideal choice for various industrial occasions.
Customization
Optional configurations include external bypass cabinet, PLC remote control module and industrial touch screen. We customize input voltage (3kV/6kV/10kV), rated capacity, communication protocols and cooling modes per demands. Special upgrades like dustproof cabinet and plateau adaptive design are also available for complicated on-site working environments.
Application
Certificate
Ordering Information
|
Application |
Required Data to Get a Quotation |
|
Replacement |
For the procurement of motors intended as replacements for existing equipment, customers are required to provide clear photographs of the original motor's nameplate, photos of the overall equipment assembly, assembly drawings, and the original technical specifications. Based on the provided information, we will precisely identify the exact matching model and select the appropriate customized product specifications to furnish you with an accurate and error-free formal quotation. |
|
New Equipment |
For the procurement of motors intended as components for brand-new equipment, a complete submission of all technical parameters and customization requirements is mandatory. This includes voltage, power, rotational speed, frequency, frame size, cooling method, insulation class, connection type, starting method, driven equipment, application industry, and ambient operating temperature. Additionally, please specify whether accessories-such as heaters, temperature sensors, vibration sensors, speed sensors, or encoders-as well as corresponding spare parts, are required. |
Package
Contact Us
If you have a specific purchasing intent and wish to inquire about product pricing, custom solutions, or bulk discounts, as a direct manufacturer with no intermediaries, we are able to pass significant cost savings directly on to our customers. We are ready to provide detailed answers to all your questions; contact us immediately to receive your exclusive, personalized quotation.
