Xian Putai Electric Motor Equipment Co., Ltd. is one of the leading manufacturers and suppliers of yr ip44 industrial ac motor in China. If you're going to buy CE approved yr ip44 industrial ac motor, welcome to get pricelist from our factory. All customized products are with high quality and low price.

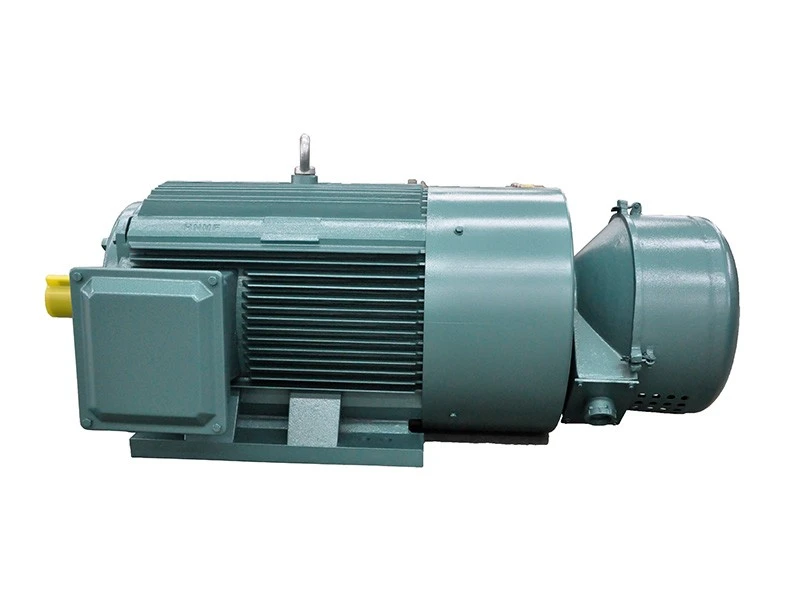

YR industrial AC motor Introduction
The YR Series (IP44) wound-rotor three-phase asynchronous motors are designed for general-purpose industrial applications, with power ratings and mounting dimensions fully aligned with international IEC standards. The ac three phase induction motor features an IP44/ IP54 enclosure protection grade, IC411 self-cooling method, and S1 continuous duty cycle(S3/S4/S6 optional), ensuring reliable long-term operation in standard industrial environments.
For frame sizes YR280~355, the industrial ac motor strictly complies with the national industry standard JB/T 7119-1993 Technical Specifications for YR Series (IP44) asynchronous three phase motor. The YR 355 frame size is an independently developed model by our company, fully meeting the internal technical specification 0×D.510.083, delivering consistent performance and quality.
The entire series of industrial ac motor adopts Class F insulation system, with a rated voltage of 380V and rated frequency of 50Hz. The stator winding is delta-connected, while the rotor winding is star-connected, ensuring stable starting performance and reliable operation. These motors are ideal for applications requiring high starting torque and smooth speed control, widely used in various industrial transmission systems.
Main Technical Parameters
|
Frame |
H280~H355 |
|
Power Scope |
37KW~250KW |
|
Voltage |
380V, 400V, 415V, 460V, 490V, 660V, 690V,1140V |
|
Frequency |
50Hz, 60Hz |
|
Number of Poles |
4P, 6P, 8P |
|
Speed |
1500rpm, 1000rpm, 750rpm |
|
Cooling Method |
IC411 |
|
Protection Grade |
IP44/IP54 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty |
S1, S4, S5, S6, S9 |
|
Mounting Type |
B3/ B5/ B35/ V1 |
|
Standard |
IEC |
|
Efficiency Grade |
IE3 |

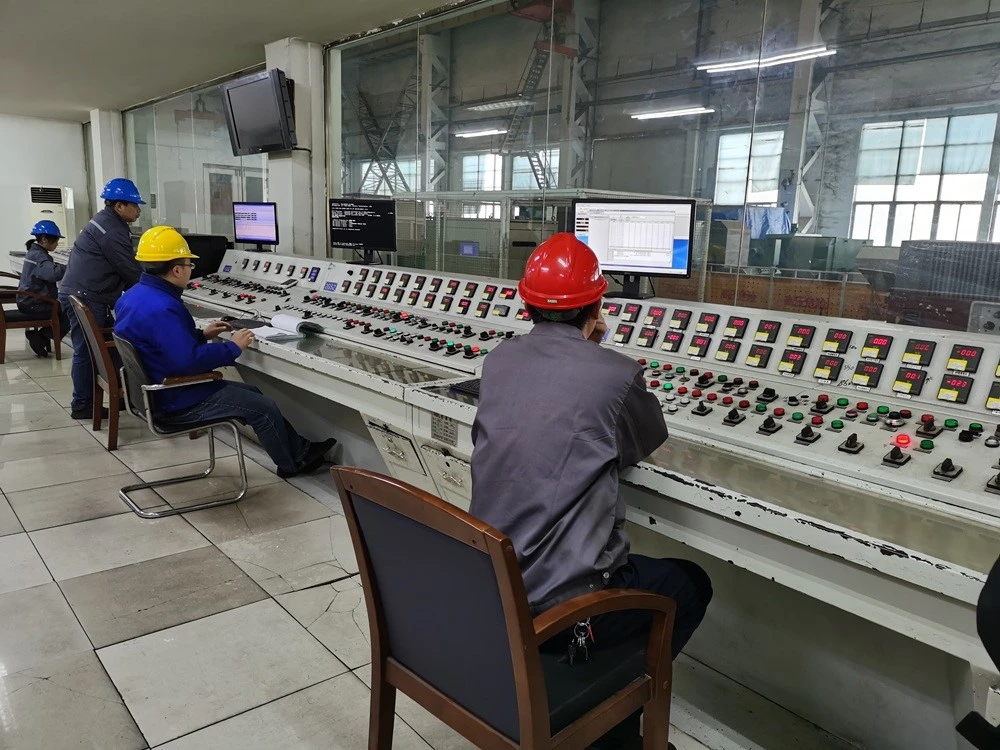

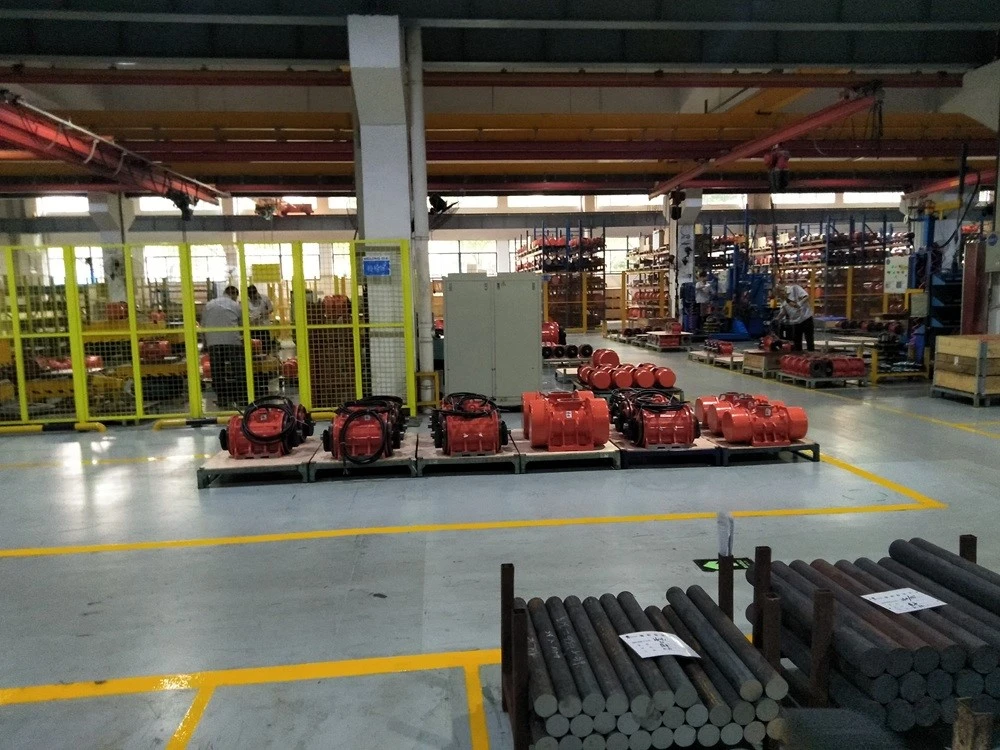

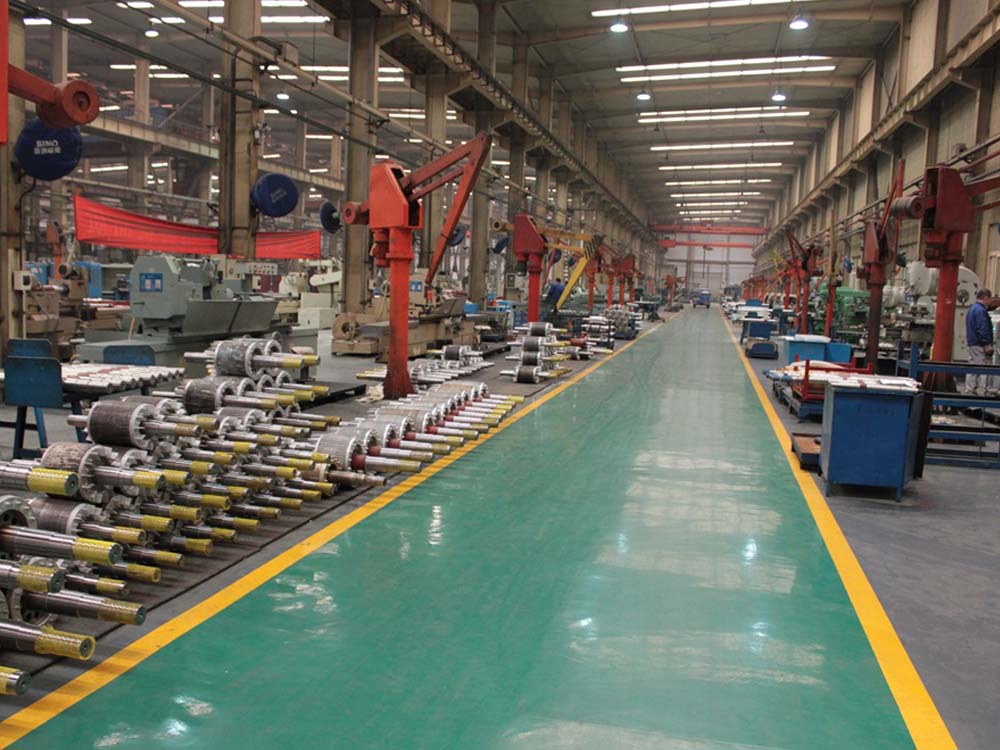

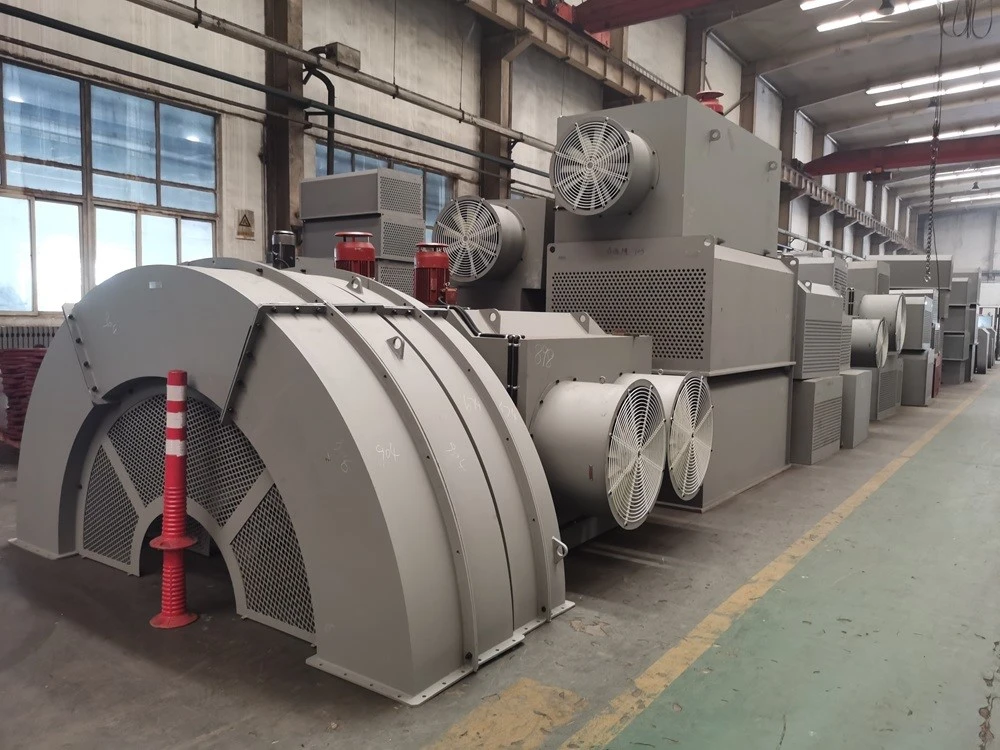

Product Production Process
About Us
PUTAI Electric Motor Equipment Co., Ltd
As a technology-driven manufacturer dedicated to industrial drive equipment, PUTAI Electric Motor focuses on the technological evolution, mass production, and domestic and international market sales of motors and their associated electrical equipment. The company has established a comprehensive matrix of industrial motor products designed to suit a wide array of industrial scenarios, including general-purpose AC/DC motors, medium-voltage industrial motors, variable-frequency drive and start-control systems, integrated motor winding assemblies, precision structural components, and ancillary electrical materials.
OEM Service
7x24 hours delivery
120+
Employees
20000㎡+
Plant Area
50+
Exported Countries
30+
Product Series
Packing
Vacuum-Sealed Foil Packaging
Wooden Case Package
Careful Packing Process
Qualified Export Wooden Case
Global Market Presence
Our business operations span over 50 countries, reflecting our deep commitment to serving the overseas industrial equipment market. Our entire product line complies with international certification standards-including ISO9001, CE, EAC, and CCC-making it perfectly suited for the complex operating environments found in sectors such as petrochemicals, cement, ventilation, and metallurgy. Leveraging our localized design capabilities, we fine-tune product parameters to account for regional variations in operating conditions, thereby ensuring the long-term stability and reliability of equipment deployed overseas.
Advantages in Custom Production
Dedicated to high-end motor OEM customization for heavy industry, we primarily focus on high-performance DC and medium/high-voltage motors, serving core sectors such as steel, mining, and power generation. Powered by advanced manufacturing processes and strict quality control, we provide comprehensive, personalized customization services-from initial solution design through to after-sales follow-up-helping clients enhance both the quality and efficiency of their equipment.
Our Partners
Ordering Note
For Old Motor
- Photos of the original motor nameplate
- Photos of the equipment's exterior
- Relevant drawings
- Original parameter tables.
For New Motor
- Voltage
- power
- rotational speed
- frequency, frame size
- cooling method
- insulation class
- connection type
- starting method
- type of driven equipment
- application industry
- ambient temperature
- accessories such as heaters, temperature sensors, vibration sensors, speed sensors, and encoders
- along with spare parts procurement needs.
Ordering Information
|
Ordering Scenario |
Submission of Complete Data and Technical Parameters Required |
|
Replacement of Existing Motors |
If the motor being purchased is intended to replace an existing unit, please provide the following materials in full to facilitate a rapid and precise model match, selection of appropriate product specifications, and the issuance of an accurate quotation: a photograph of the original motor's nameplate, photographs of the complete machine/equipment, relevant equipment drawings, and the original technical parameter sheet. |
|
Integration with New Equipment |
If the motor being purchased is intended for integration into brand-new equipment, please provide the following information in comprehensive detail: Electrical Parameters (Voltage, Power, Speed, Frequency, Frame Size); Equipment Configuration Parameters (Cooling Method, Insulation Class, Connection Method, Starting Method); Operating Conditions (Type of Driven Equipment, Industry Application, Ambient Temperature); Optional Accessories (Heaters, Temperature Sensors, Vibration Sensors, Speed Sensors, Encoders, etc.), as well as whether any accompanying spare parts are required. |
If you have any questions regarding the specifications or delivery lead times of the products listed above-or if you require a precise, discounted quotation-our professional sales team is available to provide dedicated, one-on-one assistance throughout the entire process. Please feel free to contact us at any time; we are ready to quickly tailor a procurement solution that perfectly suits your needs.
