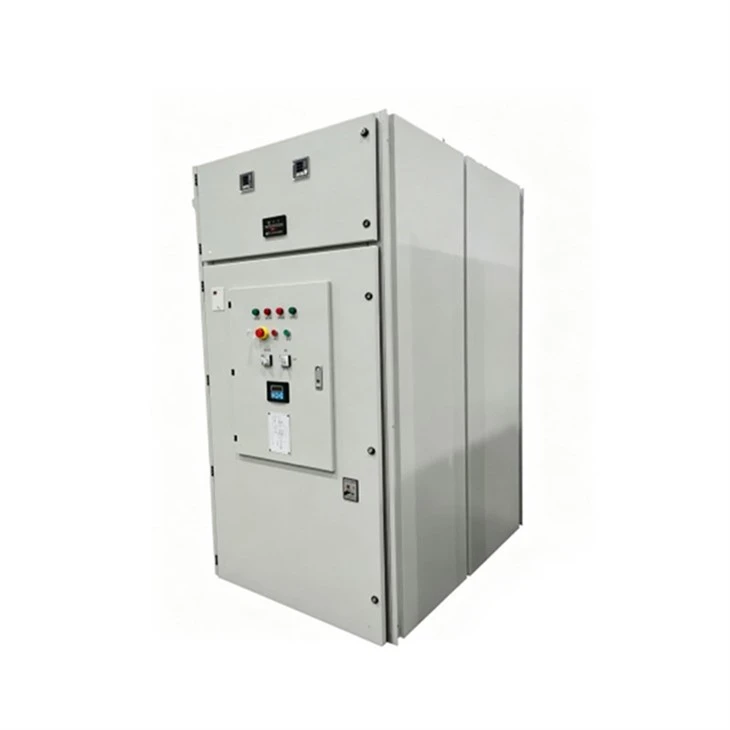

Name: China Customized TGRJ Solid Slip Ring Starter Manufacturers Suppliers - Factory Direct Price - Putai
Brand: Putai
SKU: 302949039

Xian Putai Electric Motor Equipment Co., Ltd. is one of the leading manufacturers and suppliers of tgrj solid slip ring starter in China. If you're going to buy CE approved tgrj solid slip ring starter, welcome to get pricelist from our factory. All customized products are with high quality and low price.

General Introduction

The TGRJ series medium & high voltage solid-state Solid Slip Ring Starter are engineered as core control and protection solutions for 3~10kV squirrel-cage asynchronous and synchronous motors in industrial applications. The 3 phase motor soft starter integrates high-quality anti-parallel thyristor modules and intelligent electronic control systems between the high-voltage motor stator winding and power supply. Through control logics such as constant current and voltage ramp, this ac motor starter precisely adjusts the thyristor conduction angle to achieve a smooth transition of the input voltage to the motor stator winding until full-voltage operation. Upon completion of start-up, the bypass contactor closes automatically to reduce operational energy loss.

Equipped with a comprehensive fault protection system covering overload, phase loss, starting peak overcurrent and other working conditions, the Solid Slip Ring Starter effectively eliminates the harmful impact of excessive motor starting current on the power grid, enabling normal operation of high-power motors under limited grid capacity and extending the service life of both the power grid and equipment. Additionally, slip ring induction motor starter features a professional soft stop function, which smoothly reduces the voltage of the motor stator winding to avoid sudden equipment stagnation, thereby preventing water hammer effect in water pumps and impact damage to conveyor belts.

The Solid Slip Ring Starter delivers outstanding performance advantages: it supports 3kV, 6kV, 10kV voltage levels, covering motors up to 20,000kW for wide applicability; integrated soft start and soft stop functions fully guarantee safe system start-up and shutdown; the LCD display enables visual setting of starting mode, starting time and other parameters; it supports PROFIBUS or MODBUS protocol via RS485 interface for seamless integration into industrial automation systems; with compact structure and intelligent operation, it is widely used in steel, chemical, metallurgy, building materials, coal mines and other industrial fields, providing efficient and reliable control solutions for industrial motor systems.

Main Technical Data

Item	Description
Motor Voltage	3~10kV (11kV motor starter requires special design)
Motor Power	200~15000kW (Starters for motors ≥5000kW require special design)
Starting Current	2.5~3.5 times the rated current
Starting Voltage Drop	≤3V (with bypass contactor)
Starting Time	0~120s, adjustable
Starting Frequency	Frequent starting allowed
Starting Method	Current limit starting, voltage linear curve starting, voltage exponential curve starting, current linear curve starting, current exponential curve starting
Stop Method	Free stop, soft stop, braking, soft stop + automatic braking, inching function
Overload Capacity	500% for 30s; 120% continuously
Communication	RS485 interface
Protection Grade	IP4X
Structure Type	Cabinet type
Outline Dimensions (W×D×H, mm)	1000×1500×2300
Protection Functions	Operating overcurrent protection, motor thermal overload protection, phase current unbalance protection, phase loss protection, overheating protection
Ambient Conditions	• Altitude: ≤1000m (special design required for altitude exceeding 1000m) • Ambient temperature: -25℃~+45℃ • Maximum relative humidity: 95%, non-condensing • Installation site: No corrosive gas, no conductive dust, vibration ≤0.5G, good ventilation

Application

This TGRJ solid-state soft starter features wide compatibility with mainstream high-voltage squirrel-cage & synchronous motor models including Y, YKK, YKS, YXKK, YXKS, T, TAW series covering 3kV/6kV/10kV specs. It is perfectly matched with motors from well-known domestic manufacturers such as Simo, Jiamusi Electric, Wolong Nanyang Explosion-proof, Jiangsu Dazhong and SEC Motor, and also adaptable to mainstream imported high-voltage motors for diversified on-site matching demands.

Shipment

Ordering Note

Replacement of Existing Motors

a photograph of the original motor's nameplate

photographs of the complete machine/equipment

relevant equipment drawings

the original technical parameter sheet.

Integration with New Equipment

Electrical Parameters (Voltage, Power, Speed, Frequency, Frame Size); Equipment Configuration Parameters (Cooling Method, Insulation Class, Connection Method, Starting Method);
Operating Conditions (Type of Driven Equipment, Industry Application, Ambient Temperature);
Optional Accessories (Heaters, Temperature Sensors, Vibration Sensors, Speed Sensors, Encoders, etc.),
any accompanying spare parts are required.

Products Description

Custom Manufacturing Partnerships

We specialize in the OEM custom manufacturing of high-performance DC motors as well as medium- and high-voltage motors. Our products are widely utilized across heavy industry sectors, including steel production, mining, and power generation. Leveraging advanced production equipment and a rigorous quality control system, we offer comprehensive, end-to-end customization services-spanning solution design, manufacturing, performance testing, and after-sales support-to provide premium solutions that ensure the efficient and stable operation of industrial equipment.
