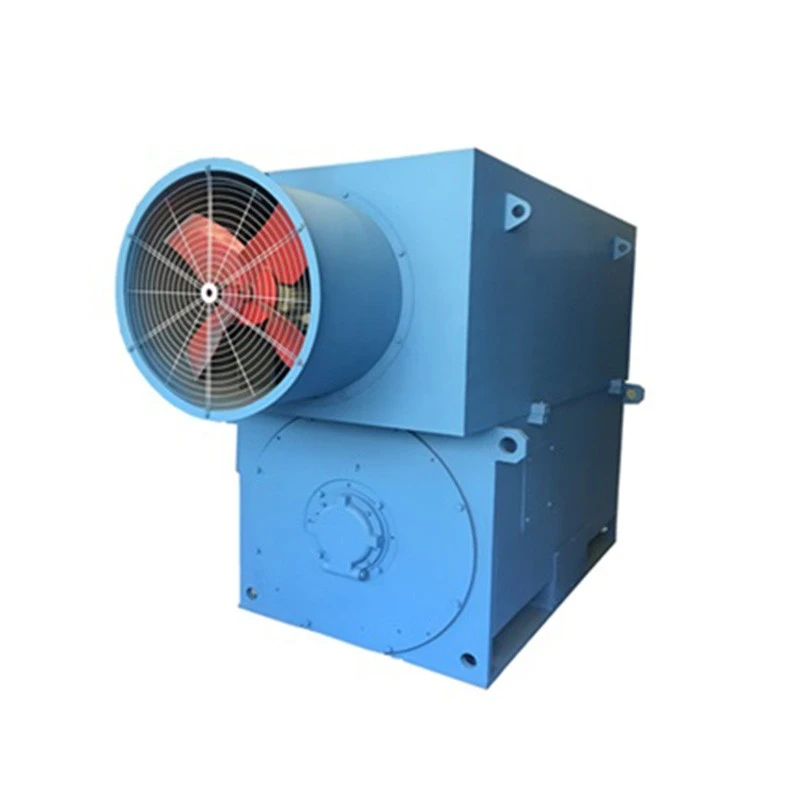

YJTFKK Motor Medium Voltage
Details
The YJTFKK 11KV motor medium voltage series is a medium and high-voltage three-phase variable-frequency squirrel-cage AC motor. Derived from the YKK three-phase high-voltage motor, it is widely applicable to driving blowers, pumps and other general machinery. Its operating speed can be precisely controlled by an inverter (VFD). With a rated frequency of 50Hz, the adjustable frequency range is 30~50Hz. This series boasts prominent advantages of a wide speed control range, large output power and stable operational performance.
Category
MV Motor
Share to
Description

Xian Putai Electric Motor Equipment Co., Ltd. is one of the leading manufacturers and suppliers of yjtfkk motor medium voltage in China. If you're going to buy CE approved yjtfkk motor medium voltage, welcome to get pricelist from our factory. All customized products are with high quality and low price.



YJTFKK Motor Series Introduction



  • The YJTFKK 11kV motor medium voltage is a high-voltage three-phase variable-frequency squirrel-cage AC motor. It adopts an air cooler cooling method (IC611) and complies with the requirements of GB/T 28562 standard.
  • With a box-type structure welded with steel plates, the motor's structure and installation type are customizable. Its rating is based on continuous duty (S1).
  • The rated frequency is 50Hz (60Hz optional), and the rated voltage is 6KV, 10KV (4160V, 6600V, 11000V optional). Other voltage levels or special requirements can be negotiated with the user at the time of order.



Detailed Photos

YJTKK2 PUTAI

YJTKK PUTAI

Main Technical Parameters



Frame

H355~H1000

Power Scope

160~8000kW

Voltage

3kV, 3.3kV, 4160V, 6kV, 6.6kV, 10kV, 11kV motor

Frequency

30~70Hz 30~50Hz

Number of Poles

2P, 4P, 6P, 8P, 10P, 12P, 16P

Speed

3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm, 370rpm

Cooling Method

IC611

Protection Grade

IP54 IP55

Insulation Class

F(155℃), H(180℃)

Duty

S1, S4, S5, S6, S9

Mounting Type

IMB3/IMV1



Advantages



The YJTFKK 6 pole induction motor features outstanding advantages, including energy efficiency, excellent speed control performance, low noise, small vibration, light weight, reliable operation, and convenient installation and maintenance.



Applications



The YJTFKK series motor is widely used in ventilators, compressors, water pumps, crushers, cutting machines and other equipment across thermal power stations, machinery industry, water conservancy, steel, cement and mining industries.

Applications
Applications
Applications
Applications
