Name: China YVFE5 Iec 60034 Motor Manufacturers Suppliers Factory - YVFE5 Iec 60034 Motor Price - Putai
Brand: Putai
SKU: 302276188

Xian Putai Electric Motor Equipment Co., Ltd. is one of the leading manufacturers and suppliers of yvfe5 iec 60034 motor in China. If you're going to buy CE approved yvfe5 iec 60034 motor, welcome to get pricelist from our factory. All customized products are with high quality and low price.

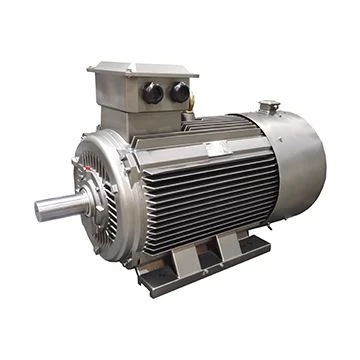

YVFE5 Motor Introduction

Derived from the industry-leading YE5 ultra-high efficiency platform, the YVFE5 series iec 60034 motor is a flagship variable-frequency speed-regulating three-phase asynchronous VSD motor, engineered for maximum energy efficiency and reliable industrial performance. Fully compliant with GB/T 755 Rotating Electrical Machines – Ratings and Performance, its efficiency meets the stringent IE5 premium efficiency standard as defined in GB/T 32891.2-2019 Rotary Motor Efficiency Classification (IE Code) Part 2: Variable Speed AC Motors, with an IC416 cooling method for robust thermal management across full-speed operation.

This series iec 60034 motor serves as a complete, direct replacement for legacy low-voltage variable-frequency motors including YJTG, YVF2, YVFE2, YVFE3, and YVFE4 3 phase ac induction motor, enabling seamless retrofitting and maximum energy-saving upgrades for existing systems. When integrated with frequency converters, the YVFE5 energy saving motor speed regulation system outperforms conventional solutions with industry-leading energy savings, precise closed-loop speed control, an ultra-wide operating speed range, ultra-low noise and vibration, and seamless compatibility with all major domestic and international inverters.

Widely deployed across industrial applications, the YVFE5 series iec 60034 motor is the optimal choice for driving fans, pumps, compressors, and heating equipment, delivering unmatched energy efficiency, reliable long-term operation, and enabling precise automatic control for industrial systems.

Main Parts

Copper Windings

End Cover

Frame

Main Technical Parameters

Frame	H80~H450
Power Scope	0.18KW~1000KW
Voltage	380V, 400V, 415V, 460V, 490V, 660V, 690V,1140V
Frequency	5~70Hz, 3~100Hz
Number of Poles	2P, 4P, 6P, 8P,10P
Speed	3000rpm, 1500rpm, 1000rpm, 750rpm,600rpm
Cooling Method	IC416
Protection Grade	IP55
Insulation Class	F(155℃), H(180℃)
Duty	S1, S4, S5, S6, S9
Mounting Type	B3/ B5/ B35/ V1
Standard	IEC
Efficiency Grade	IE5

Efficiency Saving Calculation (2 Poles for Example)

Energy Saving 2poles

Shipment

Ordering Note

Replacement of Existing Motors

a photograph of the original motor's nameplate

photographs of the complete machine/equipment

relevant equipment drawings

the original technical parameter sheet.

Integration with New Equipment

Electrical Parameters (Voltage, Power, Speed, Frequency, Frame Size); Equipment Configuration Parameters (Cooling Method, Insulation Class, Connection Method, Starting Method);
Operating Conditions (Type of Driven Equipment, Industry Application, Ambient Temperature);
Optional Accessories (Heaters, Temperature Sensors, Vibration Sensors, Speed Sensors, Encoders, etc.),
any accompanying spare parts are required.

Products Description

Custom Manufacturing Partnerships

We specialize in the OEM custom manufacturing of high-performance DC motors as well as medium- and high-voltage motors. Our products are widely utilized across heavy industry sectors, including steel production, mining, and power generation. Leveraging advanced production equipment and a rigorous quality control system, we offer comprehensive, end-to-end customization services-spanning solution design, manufacturing, performance testing, and after-sales support-to provide premium solutions that ensure the efficient and stable operation of industrial equipment.
