Name: China YVFE2 Ac Squirrel Cage Induction Motor Manufacturers Suppliers Factory - Made in China - Putai
Brand: Putai
SKU: 300088064

Xian Putai Electric Motor Equipment Co., Ltd. is one of the leading manufacturers and suppliers of yvfe2 ac squirrel cage induction motor in China. If you're going to buy CE approved yvfe2 ac squirrel cage induction motor, welcome to get pricelist from our factory. All customized products are with high quality and low price.

YVFE2 Motor Introduction

Derived from the proven YE2 series ac squirrel cage induction motor, the YVFE2 series is a high-performance variable-frequency speed-regulating 3 phase industrial motor, adopting IC416 cooling method. It serves as a full direct replacement for legacy low-voltage variable frequency drive ac motor motors such as YJTG and YVF2 series.

Engineered with a novel parallel-vertical cooling fin structure, a top-mounted terminal box for user-friendly wiring, and optimized base/end shield designs, the motor achieves ultra-low noise and vibration. Equipped with an axial-flow fan for forced ventilation, it guarantees temperature rise within specified limits during long-term low-speed constant-torque operation. The design fully mitigates the adverse effects of inverter power supply, ensuring robust overload capacity at high frequencies and stable constant-torque output at low frequencies.

When paired with frequency converters, the YVFE2 ac squirrel cage induction motor system outperforms conventional speed regulation solutions with significant energy savings, superior speed control performance, wide speed range, and seamless compatibility with domestic and international inverters. It is widely applied for constant-torque/power speed regulation in light industry, textile, chemical, metallurgy, and machine tools, as well as energy-saving speed control for fans and pumps, enabling reliable automatic control of industrial systems.

Standard models are kept in stock locally. We have ample ready goods to ship fast, support urgent replacement and bulk orders, and goods can be delivered anytime upon order.

Products Description

YVFE2

YE2--5 Old

YVFE205

YVFE202old

Technical Data

Frame	H80~H355
Power Scope	0.37KW~375KW
Voltage	380V, 400V, 415V, 460V, 490V, 660V, 690V,1140V
Frequency	5~70Hz, 3~100Hz
Number of Poles	2P, 4P, 6P, 8P
Speed	3000rpm, 1500rpm, 1000rpm, 750rpm
Cooling Method	IC416
Protection Grade	IP55
Insulation Class	F(155℃), H(180℃)
Duty	S1, S4, S5, S6, S9
Mounting Type	B3/ B5/ B35/ V1
Standard	IEC
Efficiency Grade	IE2

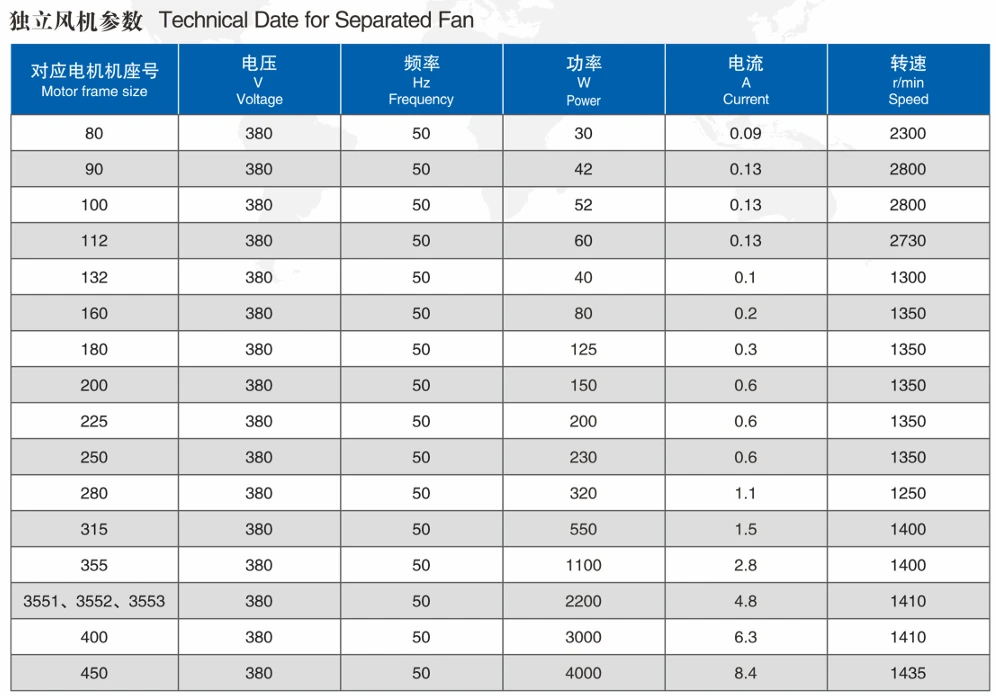

Blower Data

product-996-696

Ordering Note

Replacement

For the procurement of motors intended as replacements for existing equipment, customers are required to provide clear photographs of the original motor's nameplate, photos of the overall equipment assembly, assembly drawings, and the original technical specifications. Based on the provided information, we will precisely identify the exact matching model and select the appropriate customized product specifications to furnish you with an accurate and error-free formal quotation.

New Equipment

For the procurement of motors intended as components for brand-new equipment, a complete submission of all technical parameters and customization requirements is mandatory. This includes voltage, power, rotational speed, frequency, frame size, cooling method, insulation class, connection type, starting method, driven equipment, application industry, and ambient operating temperature. Additionally, please specify whether accessories-such as heaters, temperature sensors, vibration sensors, speed sensors, or encoders-as well as corresponding spare parts, are required.

Certificate

Ordering Information

Ordering Scenario

Submission of Complete Data and Technical Parameters Required

Replacement of Existing Motors

If the motor being purchased is intended to replace an existing unit, please provide the following materials in full to facilitate a rapid and precise model match, selection of appropriate product specifications, and the issuance of an accurate quotation: a photograph of the original motor's nameplate, photographs of the complete machine/equipment, relevant equipment drawings, and the original technical parameter sheet.

Integration with New Equipment

If the motor being purchased is intended for integration into brand-new equipment, please provide the following information in comprehensive detail:

Electrical Parameters (Voltage, Power, Speed, Frequency, Frame Size); Equipment Configuration Parameters (Cooling Method, Insulation Class, Connection Method, Starting Method);

Operating Conditions (Type of Driven Equipment, Industry Application, Ambient Temperature);

Optional Accessories (Heaters, Temperature Sensors, Vibration Sensors, Speed Sensors, Encoders, etc.),

as well as whether any accompanying spare parts are required.
