YVFE3 Motor Introduction

Derived from the industry-proven YE3 series big ac motor platform, the YVFE3 series is a premium variable-frequency speed-regulating three-phase asynchronous motor, engineered for superior energy efficiency and reliable performance. Fully compliant with GB/T 755 Rotating Electrical Machines – Ratings and Performance standard motor efficiency, its efficiency meets the IE3 standard as defined in GB/T 32891.2-2019 Rotary Motor Efficiency Classification (IE Code) Part 2: Variable Speed AC Motors, with an IC416 cooling method for robust thermal management.

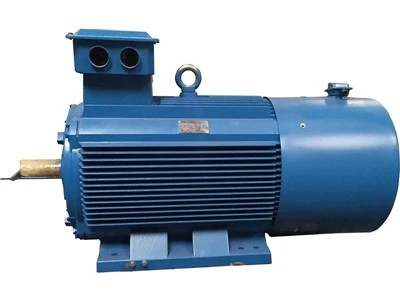

This series big ac motor serves as a complete, direct replacement for legacy low-voltage variable-frequency ac motor with vfd including YJTG, YVF2, and YVFE2, ensuring seamless retrofitting and upgrade compatibility. When integrated with frequency converters, the YVFE3 ac asynchronous motor speed regulation system outperforms conventional solutions with significant energy savings, precise speed control, a wide operating speed range, ultra-low noise and vibration, and seamless compatibility with domestic and international inverters.
Manufactured via automated core lamination and precision winding, it undergoes full machining and strict dynamic balance testing. Layered insulation and standardized assembly guarantee stable mechanical property and consistent IE3 efficiency amid variable-frequency working.

Widely deployed across industrial applications, the YVFE3 series big ac motor is the optimal choice for driving fans, pumps, compressors, and heating equipment, delivering reliable, energy-efficient operation and enabling precise automatic control for industrial systems.

PUTAI YEVF3 MOTOR

Main Technical Data

Frame	H80~H450
Power Scope	0.18KW~1000KW
Voltage	380V, 400V, 415V, 460V, 490V, 660V, 690V,1140V
Frequency	5~70Hz, 3~100Hz
Number of Poles	2P, 4P, 6P, 8P,10P
Speed	3000rpm, 1500rpm, 1000rpm, 750rpm,600rpm
Cooling Method	IC416
Protection Grade	IP55
Insulation Class	F(155℃), H(180℃)
Duty	S1, S4, S5, S6, S9
Mounting Type	B3/ B5/ B35/ V1
Standard	IEC
Efficiency Grade	IE3

Production Process

Stator

Frame

Assembly

End Cover

Package
