Xian Putai Electric Motor Equipment Co., Ltd. is one of the leading manufacturers and suppliers of high voltage 3 phase induction motor winding in China. If you're going to buy CE approved high voltage 3 phase induction motor winding, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Common Introduction

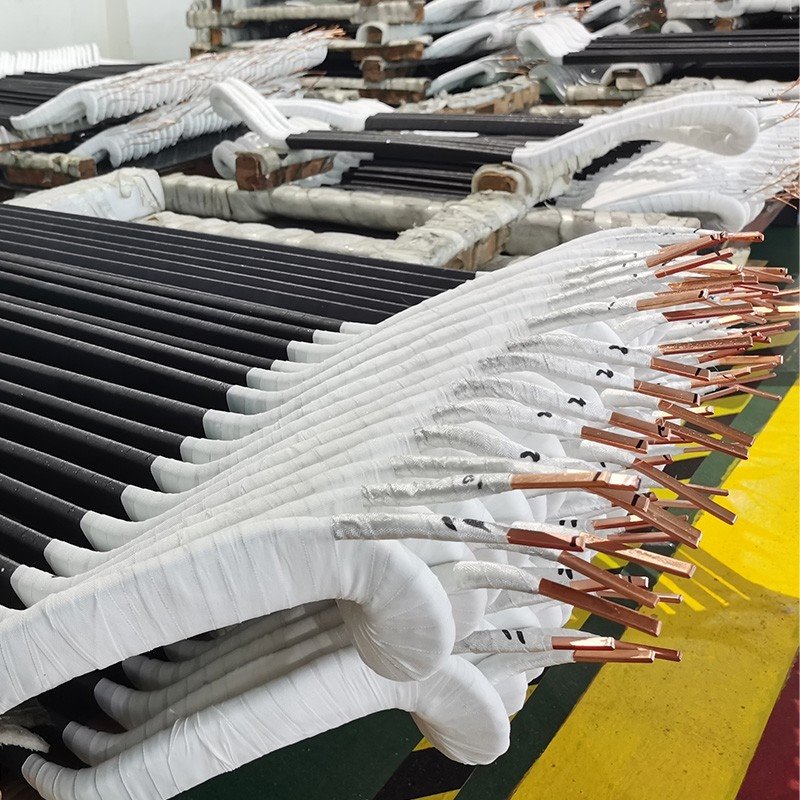

- High-voltage motor 3 Phase Induction Motor Winding (three phase induction motor winding) adopt high-purity oxygen-free copper flat wire as conductor, with F or H class epoxy mica tape as main insulation, supplemented by anti-corona materials, insulating paper and binding tapes, featuring excellent high-voltage resistance, temperature resistance and anti-corona performance. The coils go through precision winding, hot-press forming, inter-turn withstand voltage test, Vacuum Pressure Impregnation (VPI) curing and other processes, featuring compact structure, uniform insulation and high mechanical strength, capable of long-term operation under 6kV, 10kV and other high-voltage conditions.
- 3 Phase Induction Motor Winding covers small to large high-voltage motors, with flexible slot shape, turns and lead length. Widely suitable for mainstream Chinese motor brands, including Wolong Electric, Shanghai Electric, Xi'an SIMO, Jiamusi Electric, SEC Motor, Dongfang Electric, matching Y, YKK, YR, YRKK, YXKK, YKS series high-voltage three-phase asynchronous motors.
The 3 Phase Induction Motor Winding can be used for new motor manufacturing and assembly, as well as old motor overhaul, coil replacement, fault rewinding and other repair scenarios, with stable operation, low temperature rise and long service life. Manufacturers can provide customized production one-to-one according to customers' motor model, drawings, voltage level, power, core slot shape and other parameters, meeting supporting and maintenance demands in industrial and mining, power, metallurgy, petrochemical and other fields.
Materials & Processing
Raw materials include imported high-strength oxygen-free copper flat wire, F/H-grade epoxy mica tape, polyimide insulating composite paper and high-tensile glass binding tape; anti-corona paint and VPI solvent-free epoxy resin are supporting auxiliary materials. Production follows numerical control coil winding, mould hot pressing, interphase insulation wrapping, inter-turn voltage withstand detection, full vacuum pressure impregnation and high-temperature solidification step by step. Strict insulation layer thickness control eliminates air gap, improves overall tightness and dielectric stability, effectively restrains partial discharge and heat aging of windings.
Application
Cooling System
Fitted with dual independent blower cooling system for forced ventilation. Separate cooling fans stabilize temperature under wide variable-speed conditions, effectively restrain excessive heat buildup at low-speed constant-torque running. This design improves heat dissipation efficiency, extends motor service life and guarantees stable long-time variable-frequency operation.
Production process
ABOUT US
PUTAI Electric Motor Equipment Co., Ltd.
As a specialized motor manufacturer and primary source supplier, Xi'an Putai Electromechanical Equipment Co., Ltd. has long been dedicated to motor R&D, production, and import-export services. We offer a comprehensive product portfolio that encompasses a full range of AC, DC, and medium-voltage motors, alongside auxiliary electrical equipment such as motor starters and drives, windings, and precision components. Catering primarily to mid-to-high-end industrial applications, our core strength lies in delivering customized drive system solutions that balance process precision with operational efficiency. Whether you require standard motors, replacements for aging equipment, custom-designed motors for specific operating conditions, or various motor-related accessories, we provide high-quality, one-stop supply services.
Trusted Customers
Customization Information
|
Type |
Needed Files & Data |
|
For Old Motor |
Photos of the original motor nameplate Photos of the equipment's exterior Relevant drawings Original parameter tables. |
|
For New Motor |
Voltage, power, rotational speed, frequency, frame size, cooling method, insulation class, connection type, starting method, type of driven equipment, application industry, ambient temperature, accessories such as heaters, temperature sensors, vibration sensors, speed sensors, and encoders, along with spare parts procurement needs. |
