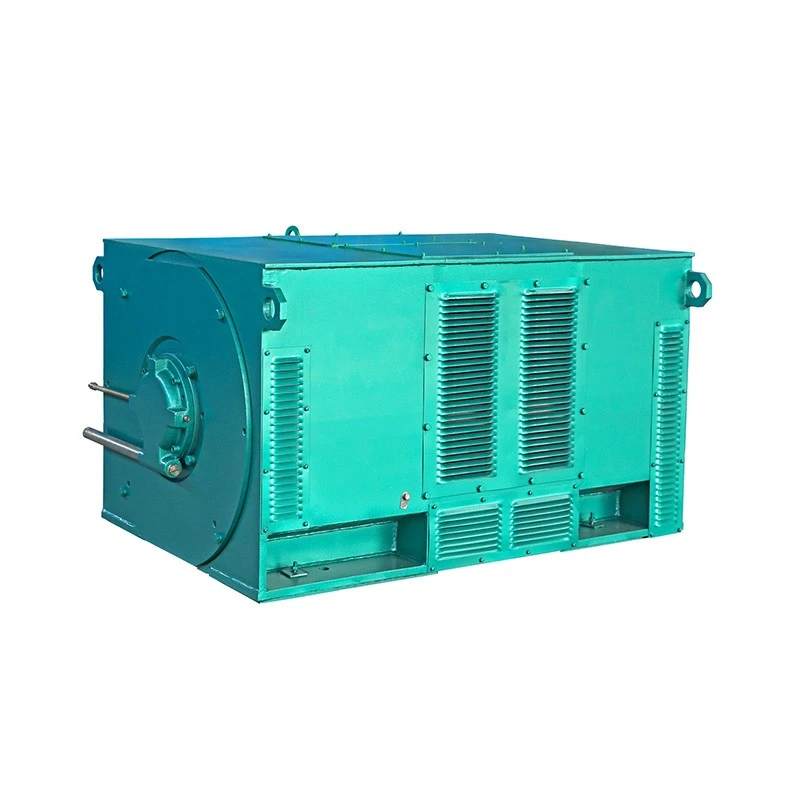

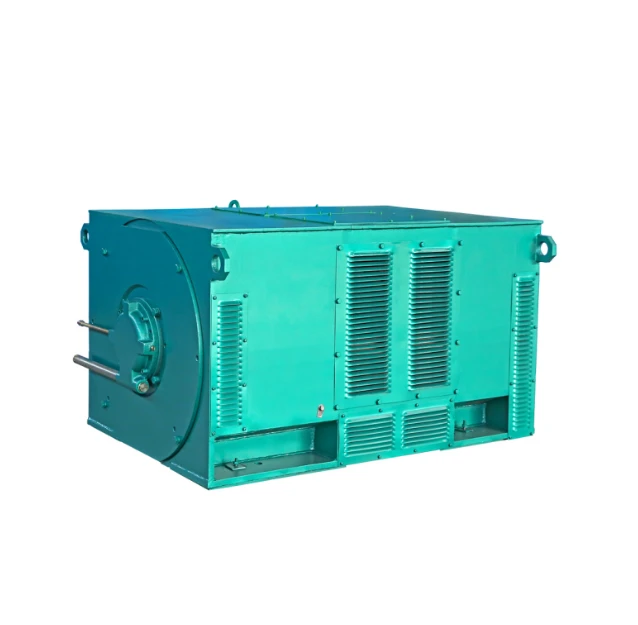

Y Motor Introduction
- The Y series high-voltage three-phase asynchronous electric motor(also can be 6600v ac motor), with a center height ranging from 355mm to 1000mm and rated voltages of 6kV and 10kV (3Kv ~11kV available), is a high-performance industrial power equipment designed for heavy-duty applications.
- As a high voltage motor with squirrel-cage rotor, it complies with JB/T7593-2008 and JB/T10446-2014 standards, ensuring stable and reliable operation in harsh industrial environments.
- Adopting a full steel plate welded box-type structure, the HV electric motor features compact design, light weight and high rigidity. Equipped with F-class insulation and treated by VPI vacuum pressure impregnation technology, it boasts excellent insulation performance and a long service life, with optional protection grades of IP23 and IP44 to adapt to different working conditions. Its cooling methods include IC01, IC11 and IC31, effectively reducing operating temperature and ensuring continuous work
Main Technical Parameters
|
Frame |
H355~H1000 |
|
Power Scope |
200~15000kW |
|
Voltage |
3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V |
|
Frequency |
50Hz, 60Hz |
|
Number of Poles |
2P, 4P, 6P, 8P, 10P, 12P, 16P |
|
Speed |
3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm, 370rpm |
|
Cooling Mechod |
IC01 |
|
Protection Grade |
IP23 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty |
S1, S4, S5, S6, S9 |
|
Mounting Type |
B3/V1 |
Advantages
- With a power range of 160KW to 15000KW and pole numbers from 2P to 16P, this high voltage motor offers high efficiency, energy saving, low noise and low vibration.
- We maintain a monthly production capacity of 100 for this type of high-voltage motors. Flexible customization covering outline dimension, rated power and operating voltage is available. We tailor products precisely to meet varied technical parameters of legacy motor replacement projects and diverse on-site working requirements from different clients.
Application
It is widely used to drive various general machinery such as fans, compressors, water pumps and crushers, serving as the prime mover in machinery, petroleum, power generation, metallurgy and mining industries. It can replace J and JS series motors and be derived into various types, making it a standard purchase for industrial and mining enterprises.
Chemistry Y series MV PUTAI MOTOR
sewage treatmentY series MV PUTAI MOTOR
water pumpY series MV PUTAI MOTOR
Wind Power station-Y series MV PUTAI MOTOR
Standards
| Rating | GB 755-2019 |
| Protection Grade | GB/T 4942.1-2021 |
| Mounting Type | GB/T 997-2022 |
| Efficiency | GB 30254-2024 |
| Equivalent | IEC60034-1 |
Inside the Motor
Steel Frame
Balanced Rotor
Good Quality Silicon Steel
Dip Painted Stator
Pure Copper Windings
Insulation of Stator
