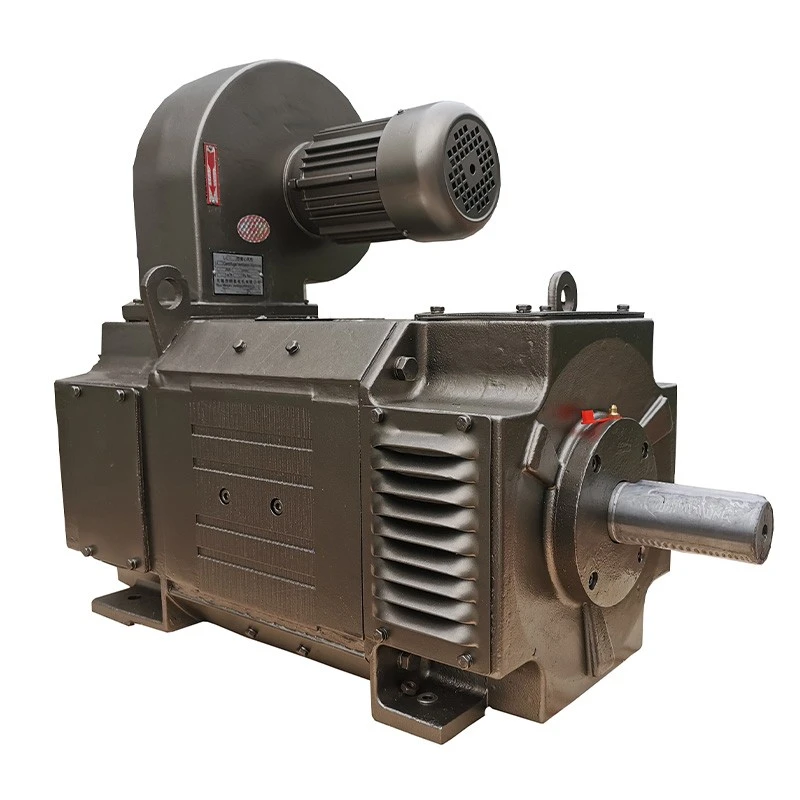

Z4 brush type dc motor General Introduction
Technical Features
Frame Design
Octagonal laminated steel frame ensures high mechanical strength and effective suppression of pulsating currents.
Power Range
1.5 kW to 840 kW, covering a wide spectrum of industrial requirements.
Voltage Options
Standard rated voltages of 160 V and 440 V, with other voltages available upon request.
Insulation Class
Class F insulation for enhanced thermal stability and service life.
Speed Grades
Nine standard speed options ranging from 200 rpm to 3000 rpm.
Cooling & Protection
Multiple cooling methods (IC06, IC17, IC37) with protection grade up to IP23S, adaptable to various operating environments.
Main Technical Parameters
|
Frame |
H100~H450 |
|
Power Scope |
1.5~840kW |
|
Voltage |
160V, 180V, 220V, 380V, 400V, 440V, 460V, 500V, 600V, 750V |
|
Exciting Mode |
Separate Exciting |
|
Exciting Voltage |
180V, 220V |
|
Speed |
200rpm~3000rpm |
|
Cooling Method |
IC06, ICW37A86 |
|
Protection Grade |
IP23, IP44 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty |
S1, S4, S5, S6, S9 |
|
Mounting Type |
B3/V1 |
Application Industries
As one of the most widely adopted dc universal motor series, PUTAI heavy dc motor Z4 Series is extensively used in:
- Steel and metallurgical industries (rolling mills, continuous casting lines)
- Cement manufacturing
- Sugar processing
- Printing and packaging machinery
- Machine tools and general industrial machinery
- Oil drilling equipment
- Plastic extrusion lines
flour mill
grinding machine
produtech-0063.i6223-kEmnuG-w-l1-n1
rolling mill
This dc universal motor's robust design, precise speed control, and adaptability to thyristor converters make it a preferred choice for demanding industrial applications.
Production process
Ordering Information
|
Application |
Data and Files Needed |
|
Replacement |
Please provide the original motor nameplate, actual photographs of the original motor, equipment drawings, and original technical specifications. Based on the actual equipment parameters, we will precisely identify the most suitable replacement model and formulate an optimal, customized product solution to ensure perfect compatibility with your equipment, while providing an accurate and effective project quotation. |
|
New Equipment |
For the procurement of ancillary equipment for new installations, please provide a complete set of technical parameters and configuration requirements: Basic Electrical Parameters (Voltage, Power, Speed, Frequency, Frame Size); Electrical Configuration (Cooling Method, Insulation Class, Connection Method, Starting Method); Operating Conditions (Driven Equipment, Industry Sector, Ambient Temperature); Optional Configurations (Heaters, Temperature Monitoring, Vibration Monitoring, Speed Monitoring, Encoders, and Spare Parts). |
